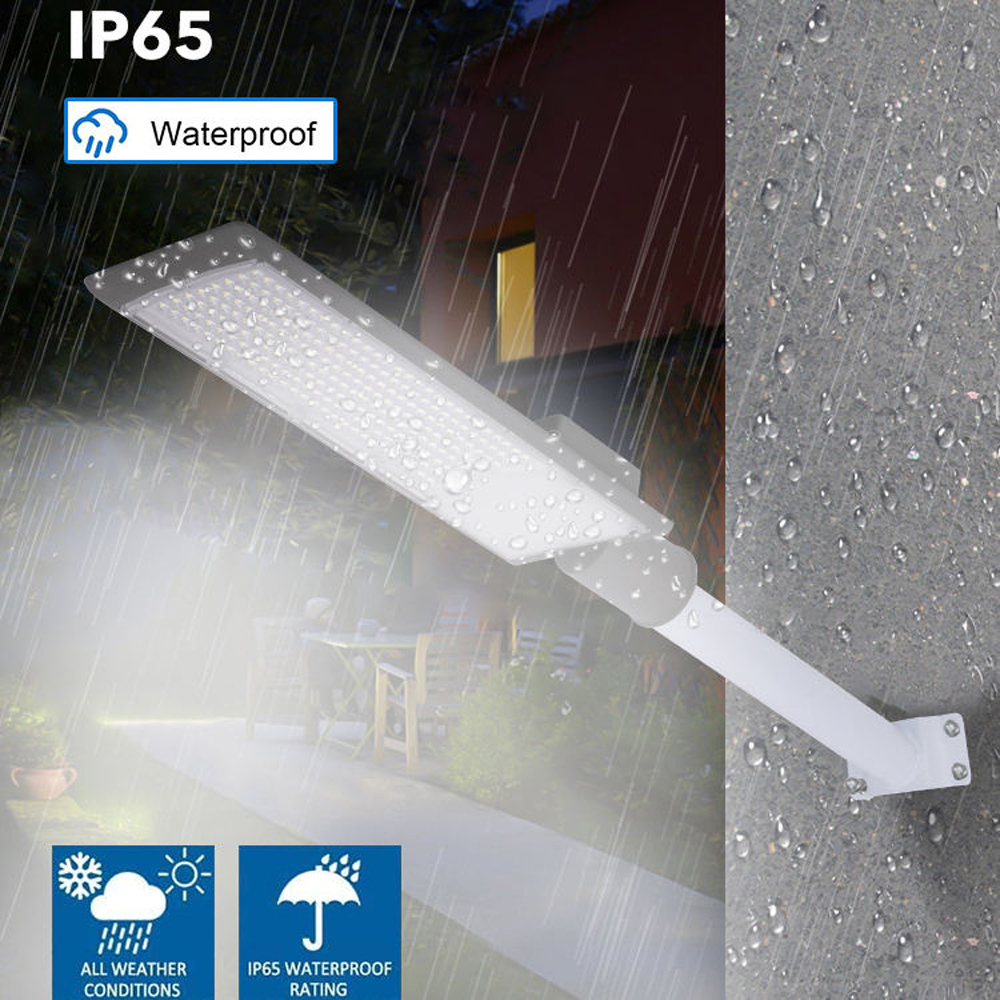

100W Led Parking Lot Light with Dusk Dawn Photocell LED Outdoor Street Light Quick Installation Commercial Street Pole Light CE RoHs Listed
Specifications:
| Item No | XP-ST-HF50W | XP-ST-HF100W | XP-ST-HF150W | XP-ST-HF200W |
| Power | 50W | 100W | 150w | 200W |
| Product Size(mm) | L471×W175×H55.3 | L556×W221×H58.1 | L645XW241XH66 | L745×W276×H69 |
| PF | >0.97 |
| Driver Efficiency | >95% |
| Efficacy | 190-200LM/W |
| Beam Angle | T2 |
| Surge protection | 6KV |
| Operating Temperature | -40°to+50℃ |
| Color Temperature | 2700k - 7000K |
| IK/IP Rating | IK08/IP65 |
| Material | AL+PC |
| Function | sensor/Dimming/Emergency |
| Control Protocol(s) | 0-10V/PMW/Rx/Dali2.0 |
| Installation | Lamp-post |
| Certification | CE/ROHS |
Product Feature:
1. character and application
Product installation is convenient and simple. The product is made of aluminum alloy, which makes the product strong and durable, and the power source has good heat dissipation.It effectively prolongs the service life of the product. This lamp its suitable for installation at a height of 5-15m.
2. Light source Characteristics.
Adopt domestic famous brand SMD2835/3030/5050 light source, Which
has high brightness, small light attenuation and longer service life.
3. Power supply characteristics
Adopt high-stability isolated constant current power supply scheme, it
has the characteristics of over-temperature protection, wide voltage range,
high power factor, high efficiency and good heat dissipation effect.
4. Heat sink feature
Adopt high-purity aluminum radiator with high thermal conductivity.
The aluminum radiator is specially designed, which increases the radiating
area, enhances the heat exchange efficiency of cold and hot air, which can
reduces the temperature of the light source and ensures the stability of the
product function, and has a longer service life.
5. product application
It is suitable for Main road, High way, Flyover, City street, Overpass, Sidewaik,
Square, School, Residential district, Industrial area, Park...
WHY CHOOSE US?
1)RICH PROJECT EXPERIENCE
the projects that have been successfully delivered include:
Asian market: Bangladesh Stadium 1200w project with DMX Control, Bangladesh Tennis Court 200w led high bay project, Bangladesh Led street light project,Big shopping mall LED Strip light project for DHAKA,Malaysia 400w led flood light project.
European market: Netherlands Stadium lighting Project；Italy led street light Project,Spain Yard project, Solar led street light project
2)RESEARCH AND DEVELOPMENT
the ability to develop new molds every year and the ability to cooperate with customers in developing new molds and professional confidentiality work
3)INNOVATIVE R&D TEAM
We have an engineer team to respond the DIALUX Simulations for lights quantity calculations and effects.IES Files are available upon request.
4)ABROAD TECHNICAL SUPPORT
For some professional projects, we can provide on-site technical support from abroad.
5) FLEXIBLE PAYMENT METHODS
After establishing a stable foundation of trust and cooperation, we can support customer O/A payment.
